64QAM Digital Wireless AV Transmitter 1080P For Drone Helicopter

Name: 64QAM Digital Wireless AV Transmitter 1080P For Drone Helicopter
Brand: Ding Shen
Price: 1 USD

Brand Name : Ding Shen

Model Number : DS-HD803

Place of Origin : china

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 3,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Constellation : QPSK, 16QAM, 64QAM

Transmission Range : LOS: More Than 10kms

Working Voltage : AC 220V / DC12V

Power Output : 22dBm-24dBm (up To 33 DBm With The Amplifier)

Transmit Power : 0.5W

Motion Speed : More Than 180km/h

Channel Bandwidth : 2/4/8MHz (optional)

Latency : ≤80ms

AV input : HD

Contact Now

Transmitter specification:

Power supply	DC 7-16V input/output
Power consumption	<5W
Modulation	DVB-T
Modulation type	QPSK/16 QAM/64 QAM
Scrambling way	Manual settings ON/OFF
RF power output	1-3Watt (2K mode)
RF bandwidth	8MHz
AV input	HD
Resolution	HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression	H.264/MPEG-4/MPEG-2
Antenna output	50Ω, SMA or “N” type Connector
Working frequency	300MHz~999MHz (optional)
Step frequency	1K Steps
Guard interval(GI)	1/4, 1/8, 1/16, 1/32 (optional)
Code rate (CR)	1/2, 2/3, 3/4, 5/6, 7/8 (optional)
FFT	2K or 8K
MER	>34dBm
LCD display	Showing working status and parameters
Parameter setup	Manual operation by buttons
Dimension	15310034mm
Weight	485g

COFDM Receiver Feature:

Working Voltage	DC input 7-24V
Power consumption	<4W
Modulation	DVB-T
Sensitivity	-82dBm (64QAM, 8M/FFT:8K, GI:1/32, CR:7/8)
Working frequency	300MHz~999MHz(optional), 16 groups of frequency choice
RF bandwidth	8MHz
AV output	HD
Resolution	HD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
Video compression	H.264/MPEG-4/MPEG-2
RF connector	N type
LED light	Turns red when the machine is power on
Work indicator	Automatically search signal after power-on, blue color and flash; While receive signal, the blue light remains on.Otherwise, lights out.
Scrambling way	Manual settings ON/OFF
Dimension	19712451mm
Weight	1024g

Features of point to point microwave radio modem 5~8km video data link for rotorcraft

Full HD video transmission, support1080P@60fps;
Support two way data transmission, and one way HD video audio transmission
Provide high-speed large data stream channel & adaptive dynamic allocation technique;
Support transparent PTP network technique;
Non-Line of Sight (NLOS) & high-speed mobile signals communication;
Standard RS-232/RS-485/RS422, RJ-45 Ethernet ,HDMI interfaces;
Support high standard and technical-grade application;
Small size, lightweight and easy to carry;

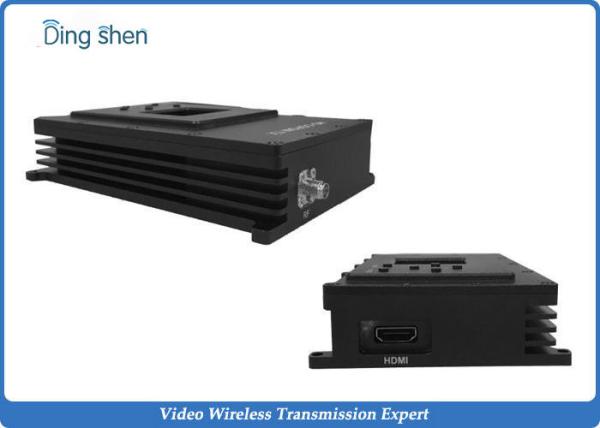

64QAM Digital Wireless AV Transmitter 1080P For Drone Helicopter

Main feature:

1) Compact designed,lightweight;
2) Full hd resolution,low delay;
3) High performance,low cost
4) Special for UAV/Drones long range video communication;
5) Maximum rf output 3Watt,can support 40km LOS range.

Product Tags:

Drone Helicopter UAV Video Transmitter

Wireless AV Transmitter 1080P

64QAM Wireless AV Transmitter

64QAM Digital Wireless AV Transmitter 1080P For Drone Helicopter Images
